Busbar System
The world's most advanced & flexible design verified busbar systems.
Busbar System

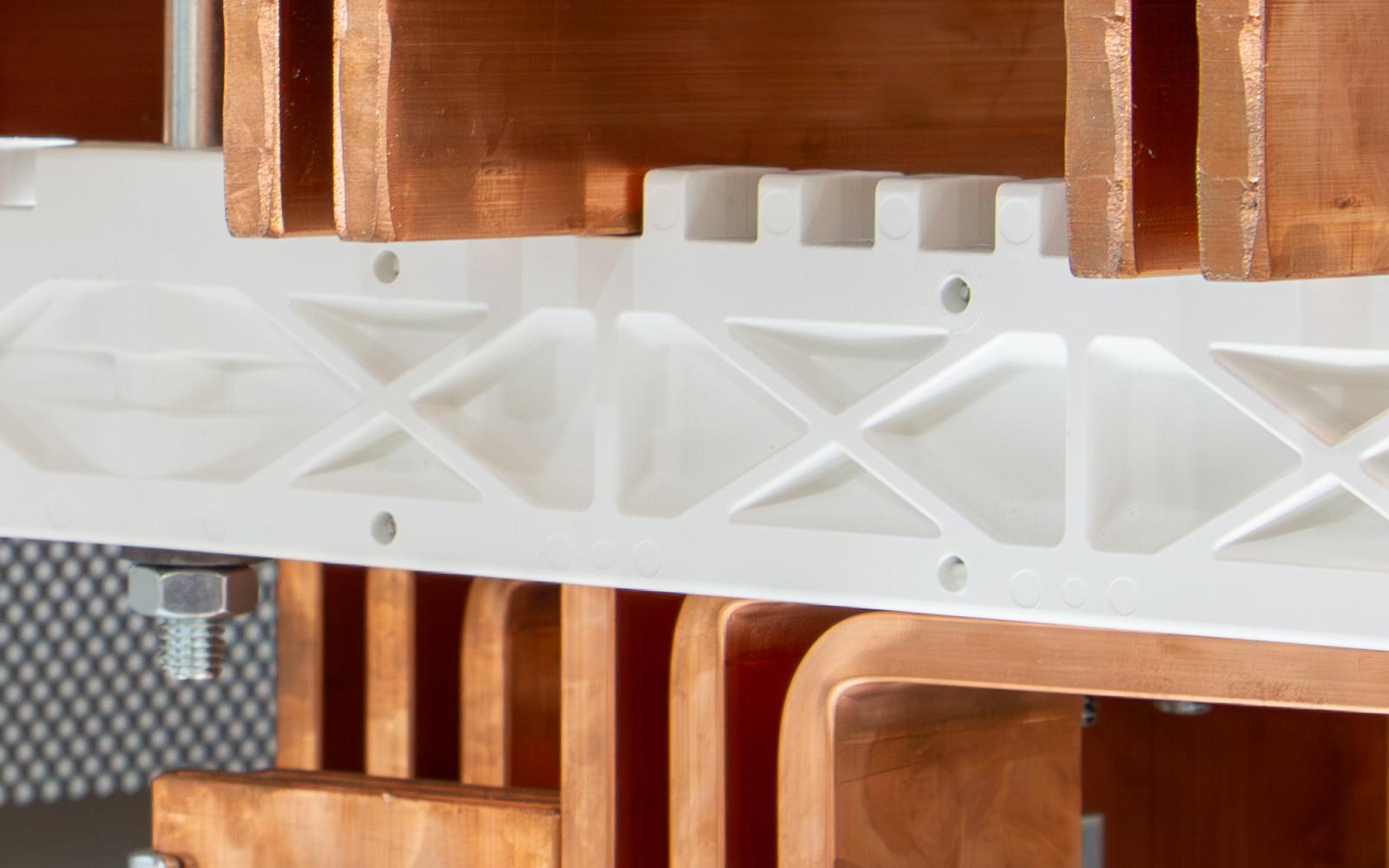

We manufacturer the world’s most advanced and flexible Design Verified busbar systems. Supports and holders are made from reinforced self-extinguishing material. Busbars systems utilize standard 10 mm flat bars and are a clamp-type arrangement, this allows the bars to easily slide into their holders, offering easy assembly, as well as minimum resistance during expansion or contraction.
The world’s most advanced and flexible Design Verified busbar systems.
Fully insulated busbar systems are available as standard. We manufacture a range of standard ventilated covers, for busbar joint connections.
So, for every type of busbar system required, Elsteel has it covered. All busbar systems are designed, manufactured and most importantly tested by Elsteel.
The savings in labour to assemble Elsteel busbar systems, helps hugely towards the cost of copper.
Another great benefit, the yearly thermal monitoring survey that many countries insist on, can be limited or even completely avoided.
Key Features
- Total solution from 250A – 7100A with a short circuit rating up to 120kA/1 sec and 100kA / 3 sec

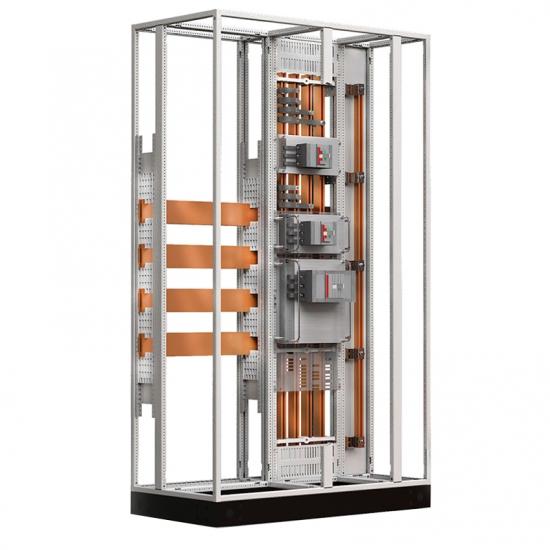

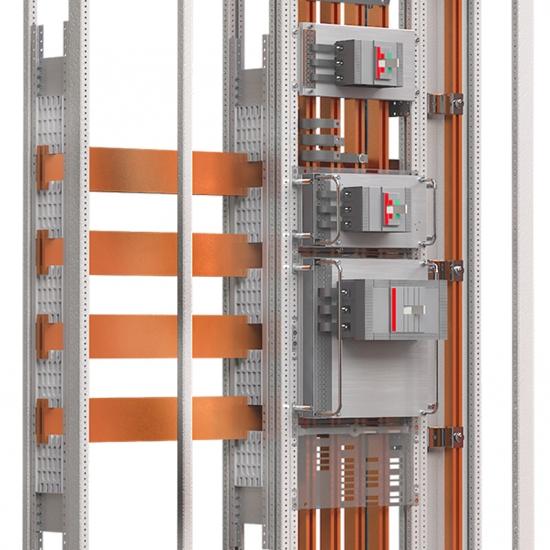

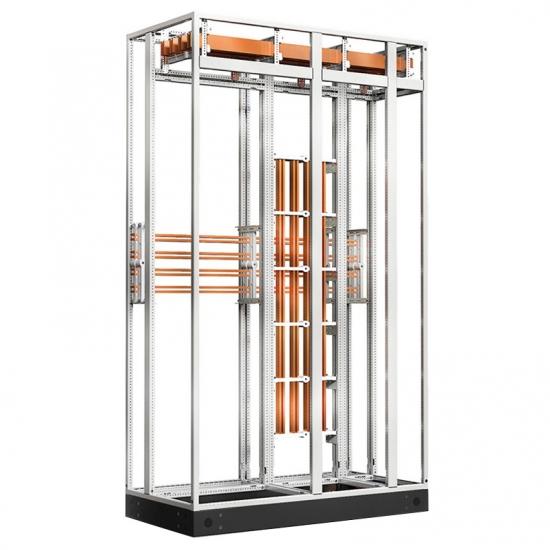

- Main busbar chamber can be in the top, bottom, middle or rear section of the panel
- Vast range of busbar holders for different ratings of busbars systems
- Air natural ventilated busbar systems – no need for forced air ventilation
- Standard 10 mm flat copper or aluminum bars
- Assembler/panel builder purchases his own copper or aluminum bars
- Arc fault containment testing in accordance with IEC TR 61641
