TECHNO MODULE LIGHT

Our lightweight version for smaller distribution boards & power distribution boards.



Techno Module Light

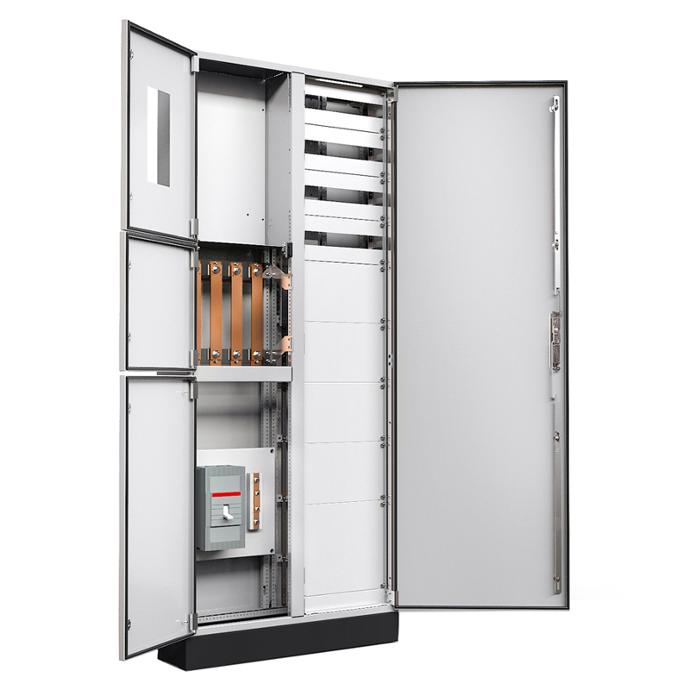

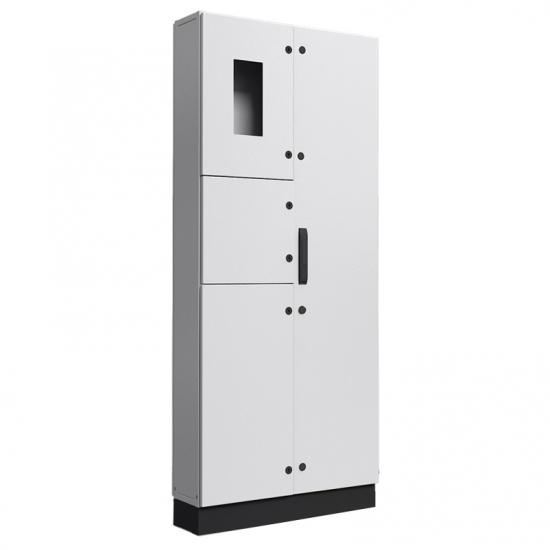

Techno Module Light is designed for smaller distribution boards and power distribution units up to 1000A. Techno Module Light is open to all circuit breaker brands and will technically fulfill all requirements with a minimum depth of as little as 200 mm

All systems are IEC 61439-2 Design Verified .
Elsteel products are manufactured under strict quality assurance - ISO 9001- certified and audited by DNV GL.


The most flexible panel board on the market.


Panels can be designed to suit any installation and site conditions, front and rear cable access options available as standard. Main busbars can be positioned at the top, bottom or rear of the panel. Panels can be arranged as ‘U-Shape’ & ‘L-Shape’ and 'Back-to-Back' etc.

Droppers and risers can sit in the side or rear of the compartments. Outgoing cables can be arranged at the left, right, rear, top or bottom. So there are no limitations on how a panel can be installed into a predetermined switchroom.

Techno Module is supported by a free user friendly software package (Techno Module Designer), TMD enables you to design your panel within minutes. It automatically generates a price, bill of material, temperature rise calculation and 2D & 3D drawings.

Techno Module is the most tested system available, ensuring the user a high quality, safe and reliable product.


Suitable For

Main Switchboards

Distribution switchboards

Motor Control Centers (MCC)

Fixed or Fully Withdrawable

Power Factor Correction Centers

UPS Applications




Key Features

 Modular system based on 200 mm grid

Zirconium nano pre treatment of steel

Smooth powder coated finish

Suitable for extreme climate conditions

High strength, low weight

Design Verified and tested up to 1000A

Short Circuit rating up to 50kA/1 sec

IP43 as standard



Applicable Standards

 IEC 60439-2

 IEC61439-2
